The vibration options from Erbessd include a low range tri–axial accelerometer with temperature sensor or a high range tri–axial accelerometer. Both sensors have an interchangeable battery and the high range sensor includes a frequency range of up to 10kHz. Atex / Hazardous Location Rated version are also available. Battery life is typically 3+ year with waveform collection 2-3 times per day and hourly overall velocity RMS measurements once an hour.
Triaxial Vibration Sensors

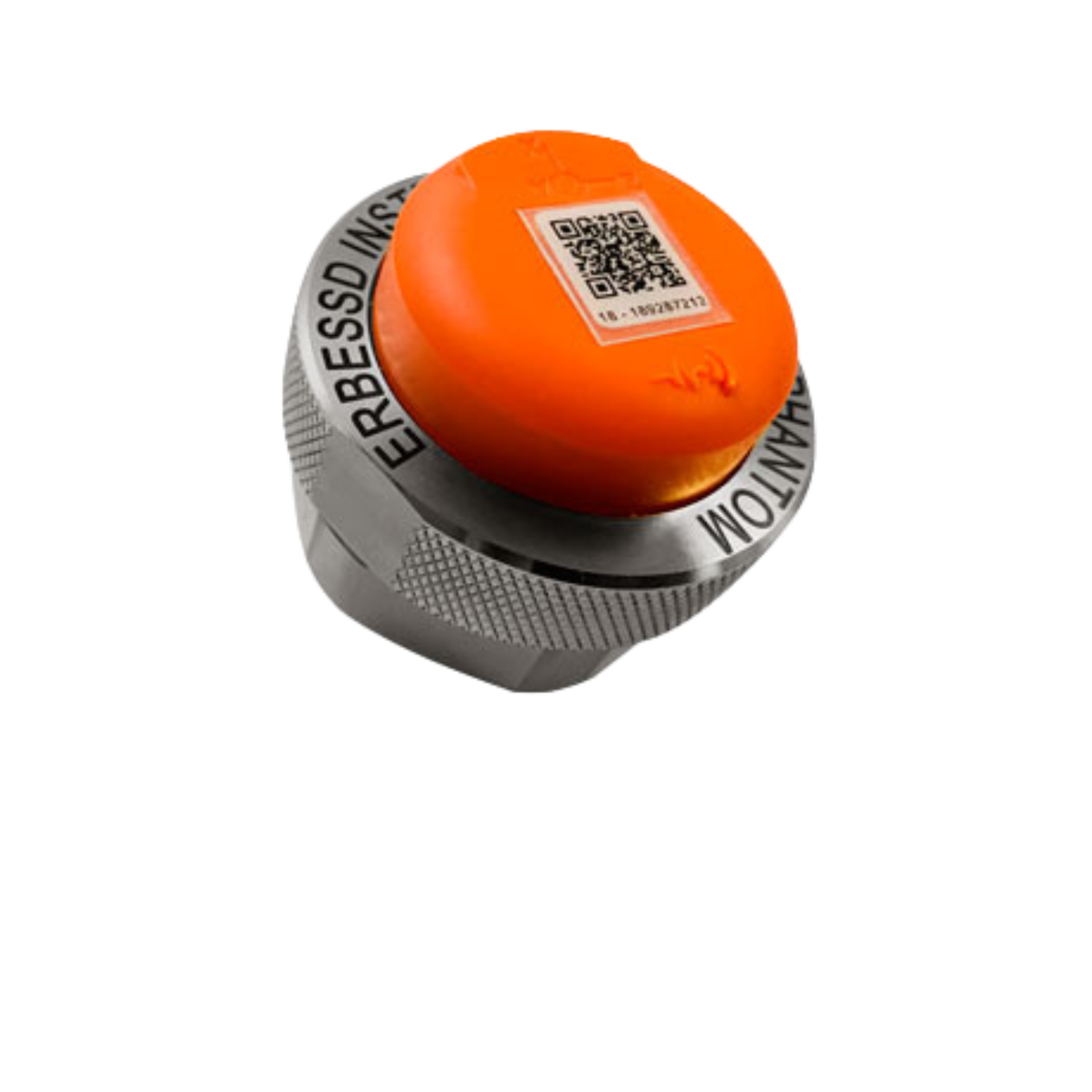

Phantom Expert Wireless Triaxial Vibration Sensor—
High Frequency
- Model: EPH-V11E
- Frequency Range: 0.5Hz–10kHz [x&y], 0.5Hz–5.1kHz [z]
- Amplitude Range: 8-16-32g (software selectable)
- Battery: Replaceable (CR2477)
- View the Erbessd Data Sheet
Phantom Expert Wireless Triaxial Vibration Sensor—
High Sensitivity
- Model: EPH-V10E
- Frequency Range: 0.5Hz–4kHz [x&y], 0.5Hz–1.8kHz [z]
- Amplitude Range: 2-4-8g (software selectable)
- Battery: Replaceable (CR2477)
- View the Erbessd Data Sheet
ATEX Triaxial Vibration Sensors
Phantom ATEX Wireless Triaxial Vibration Sensor ATEX CLASS II—
High Frequency
- Model: EPH-V16
- Frequency Range: 0.5Hz–10kHz [x&y], 0.5Hz–5.1kHz [z]
- Amplitude Range: 8-16-32g (software selectable)
- ATEX Hazardous Area Certified:
- Gas (Zone2): II 3G Ex ic IIC T4 Gc x
- Dust (Zone 22): II 3D Ex ic III T4 Dc x
- Battery: Not Replaceable
- View the Erbessd Data Sheet
Phantom ATEX Wireless Triaxial Vibration Sensor ATEX CLASS II—
High Sensitivity
- Model: EPH-V15
- Frequency Range: 0.5Hz–4kHz [x&y], 0.5Hz–1.8kHz [z]
- Amplitude Range: 2-4-8g (software selectable)
- ATEX Hazardous Area Certified:
- Gas (Zone2): II 3G Ex ic IIC T4 Gc x
- Dust (Zone 22): II 3D Ex ic III T4 Dc x
- Battery: Not Replaceable
- View the Erbessd Data Sheet

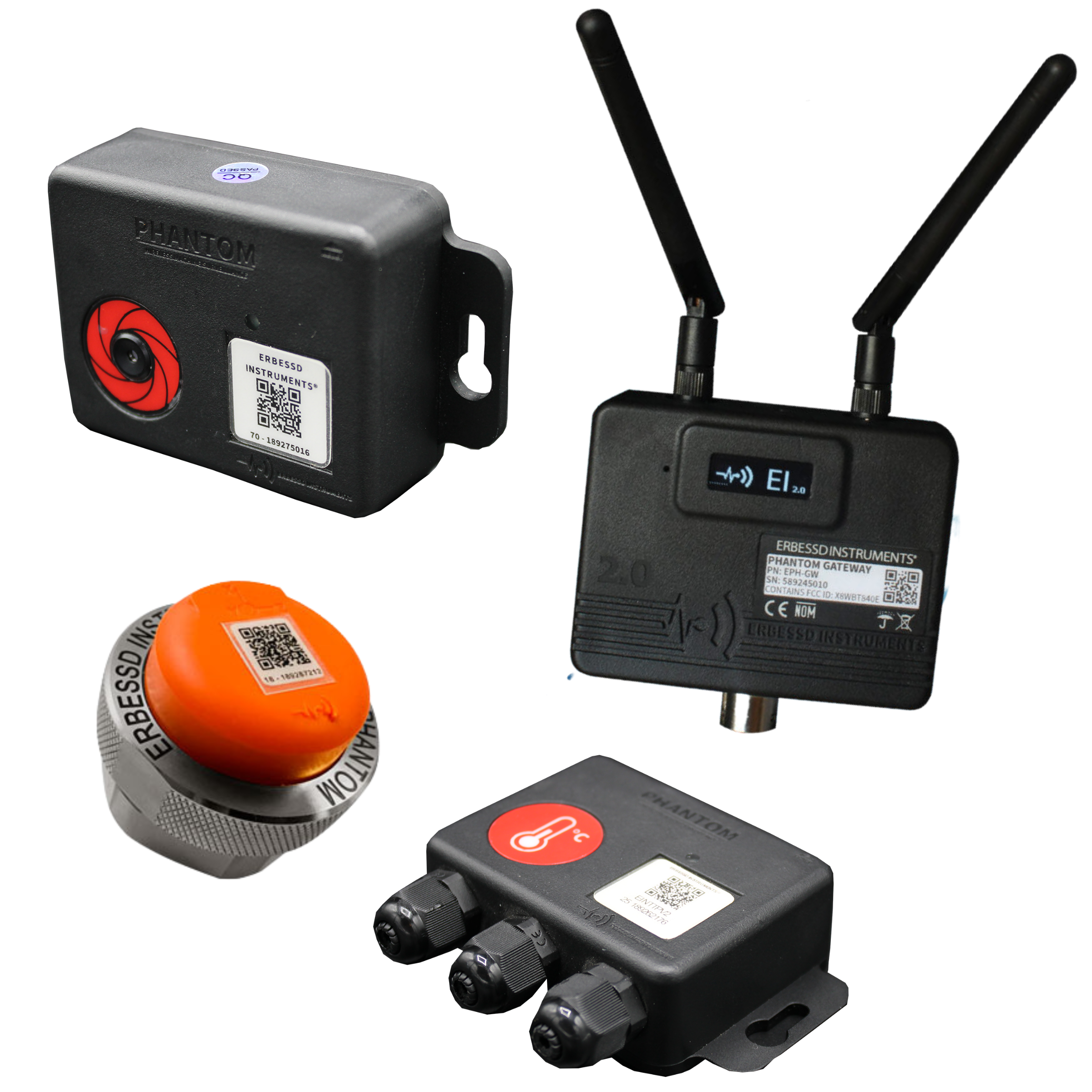

The Erbessd gateway supports wireless transducers for process monitoring including options for K-type thermocouple measurement and a non–contact temperature sensor. Utilizing a common wireless gateway infrastructure reduces cost and promotes reuse of existing investments. Pairing a broad wireless platform with InsightCM’s extensive sensing portfolio, allows customers to utilize a single platform for their online condition-based measurement needs maximizing their return on investment.

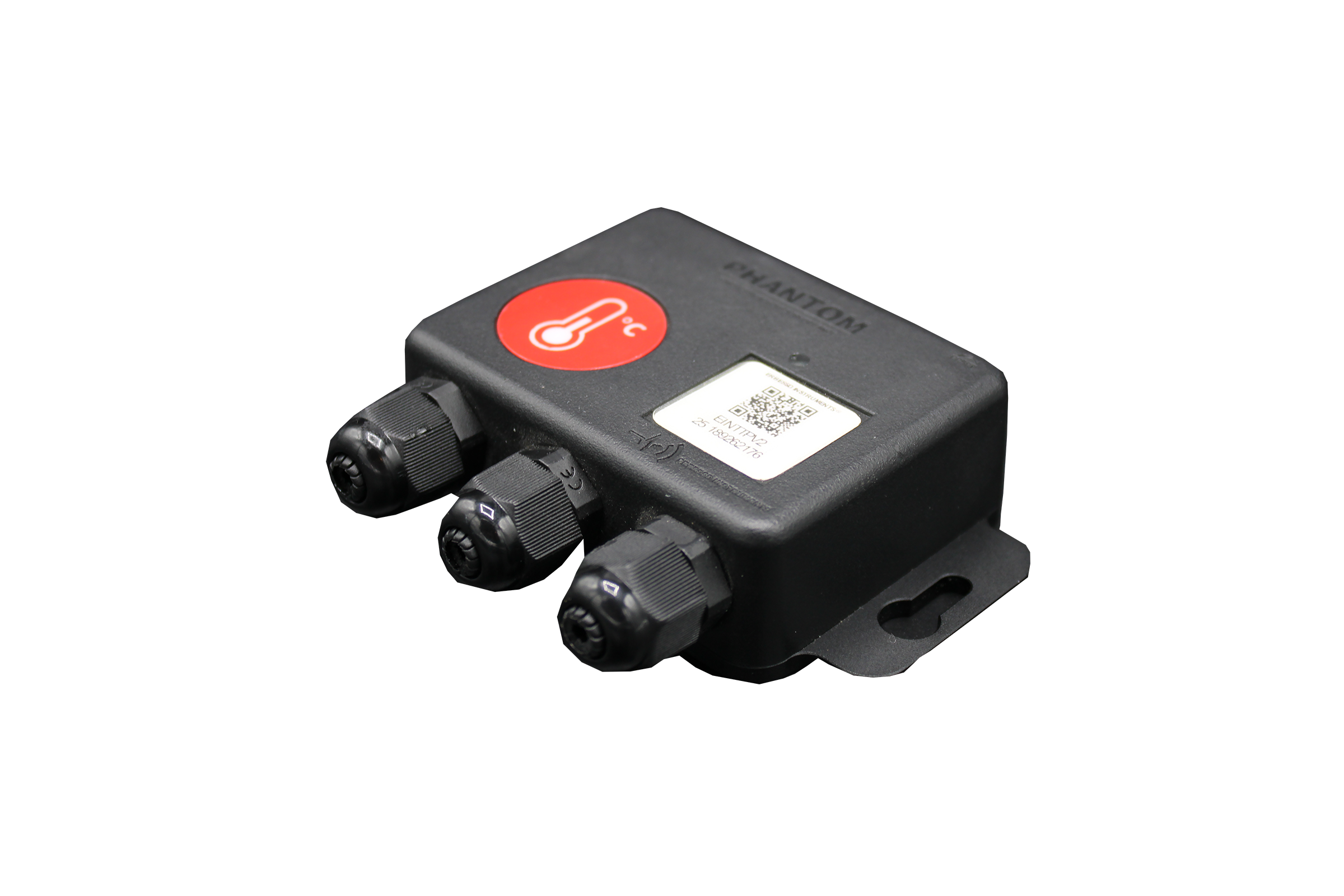

Thermocouple Type K Temperature Sensor
- Model: EPH-T26
- View the Erbessd Data Sheet
Non-Contact Temperature Sensor
- Model: EPH-T20
- View the Erbessd Data Sheet

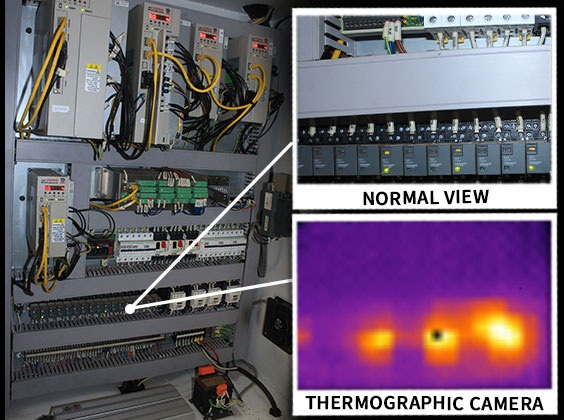

InsightCM™ also supports the Erbessd, wireless infrared camera. This camera is intended to be used in power electronics and switchgear applications within the cabinet itself eliminating the need to create an IR window. Customers can automate temperature of data collection without relying on manual route-based collection of high voltage assets where arc flash is a concern.

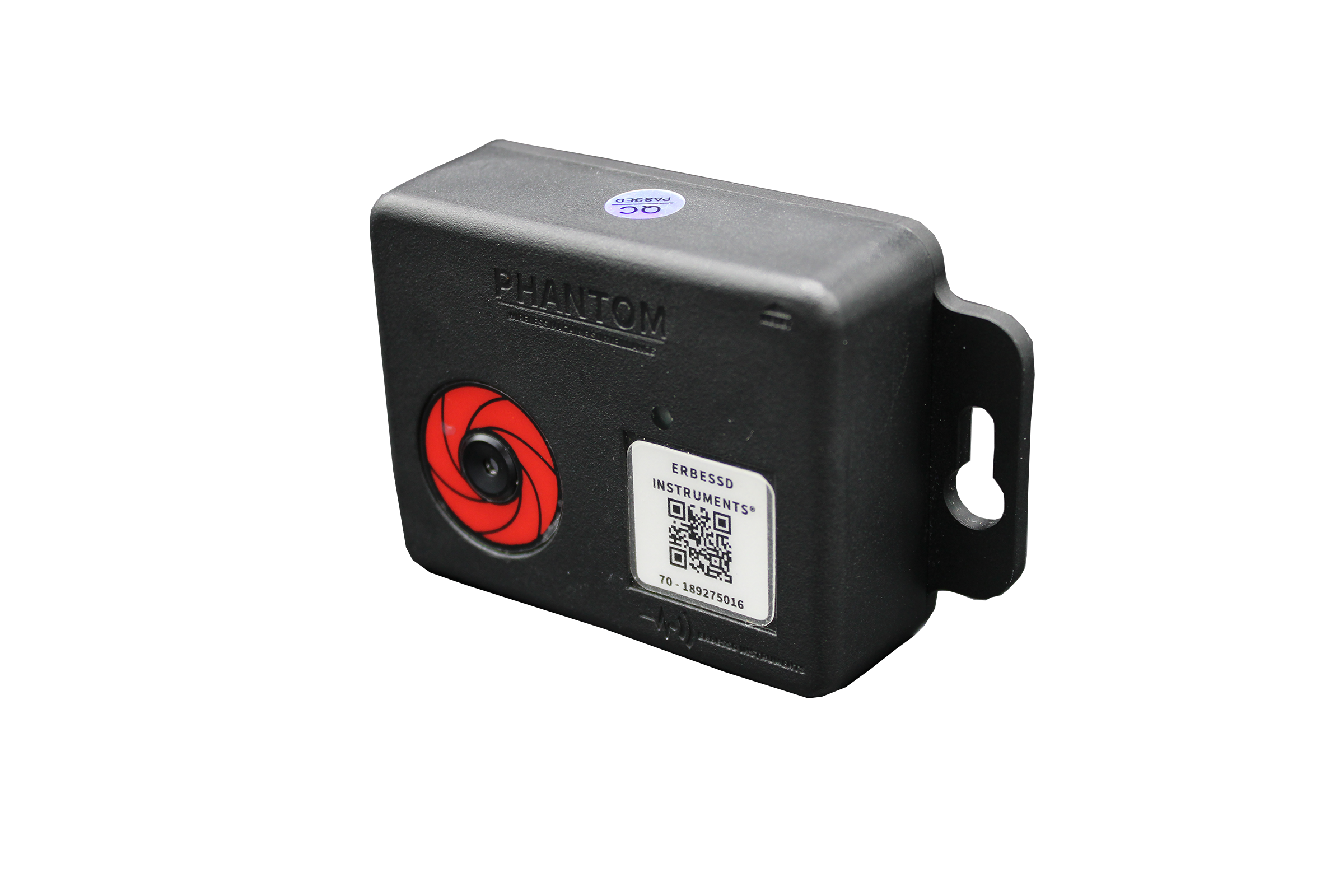

Wireless Thermographic Camera
- Model: EPH-T70
- View the Erbessd Data Sheet
