Wireless Monitoring

Simplify Your Monitoring Equipment Installation

Get Ahead of Failures with Wireless Condition Monitoring

Wireless Condition Monitoring

Using battery power wireless monitoring devices dramatically reduces retrofit installation costs by eliminating the need for running cable and conduit for signal, power, and ethernet. Cutsforth wireless monitoring solutions utilize equipment from Erbessd.

Assets Monitored

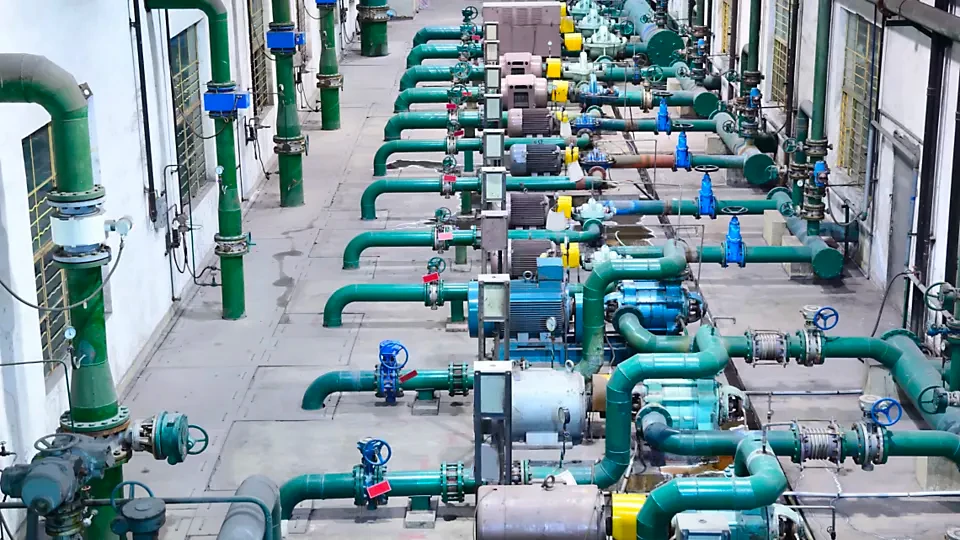

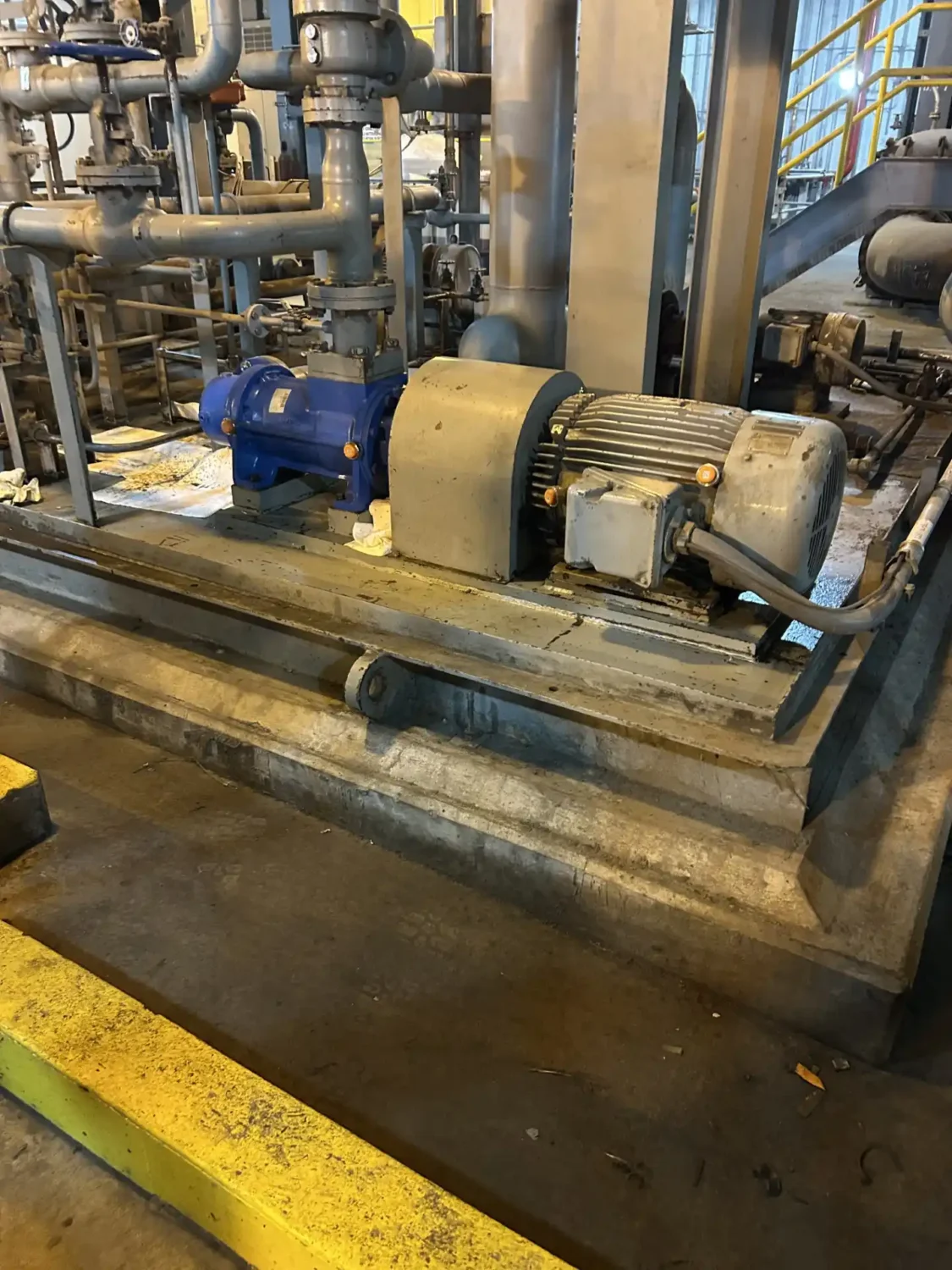

Balance-of-Plant Equipment

Failure Modes Detected

Imbalance
Misalignment
Bearing defects
Mechanical looseness
Gear wear/eccentricity
Cavitation
Resonance or structural vibration
And more…

Customer Testimonials

"Safety wise, [Brush Condition Monitoring] is a great system. We're not changing our brushes as often and our guys don't have to stick their hands in the machines to change them. We're able to change the brushes on an as needed basis, instead of an arbitrary number of brushes each month. We're seeing some O&M savings as well. We're probably able to save about 1/3 of our O&M budget since our operators aren't having to go out and check on the brushes as often. Our operators really like the system."

John Wilcox
O&M Superintendent
AEP Dresden (OH)

"I used to spend about 50–70% of my time traveling to analyze issues. Now, with InsightCM, that's down to about 20%. It's also valuable to us and our customers to not have to wait 4–5 hours to start a 500MW unit. Everybody wins."

C.R.
Vibration Analyst
Midwest Power Plant

“We have nothing but great things to say about the Cutsforth brush systems here. Low costs, easy to maintain and no issues whatsoever.”

P.B.
Maintenance Superintendent
Midwest Power Plant

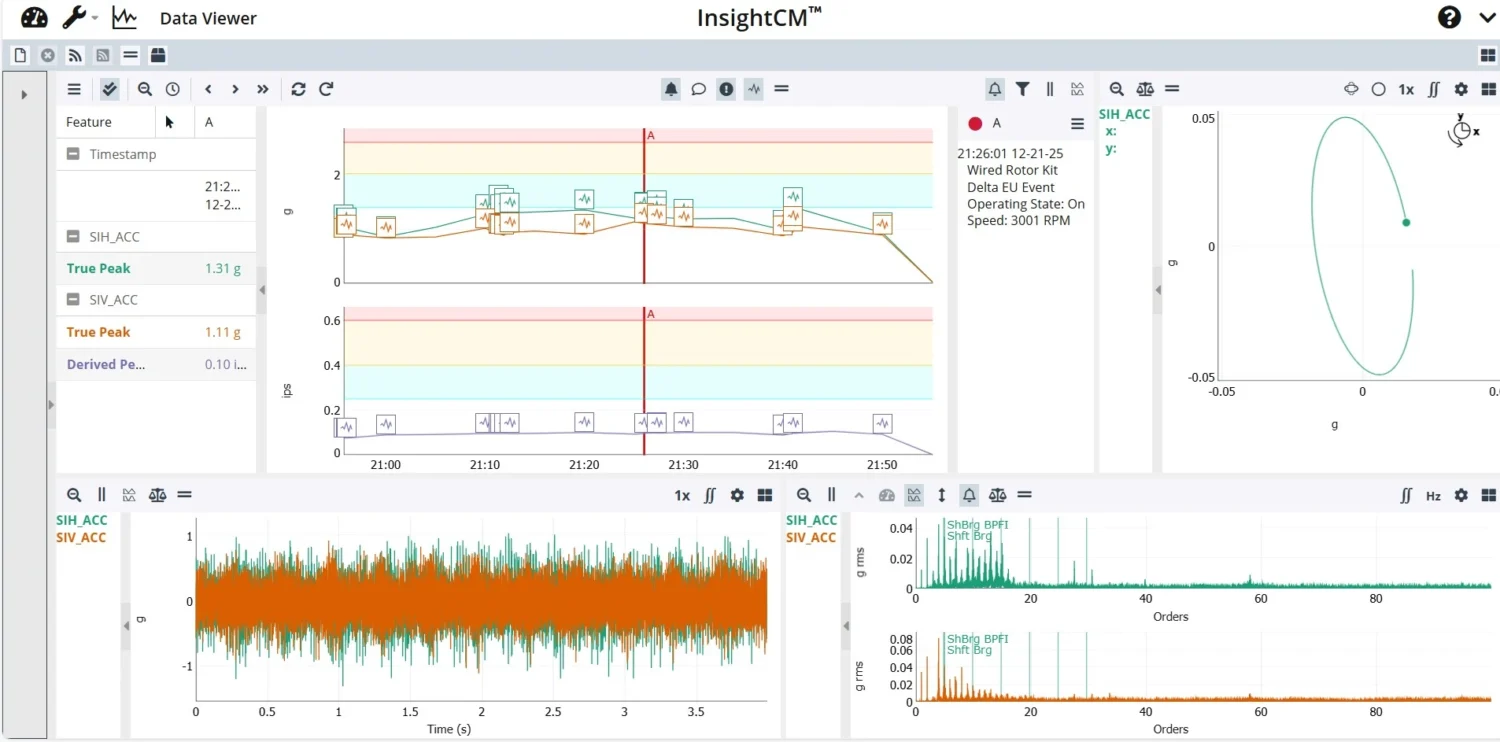

InsightCM Wireless Monitoring Features:

InsightCM brings all condition data — whether from wired or wireless sensors — into a single, unified platform. It combines vibration, electrical, thermal, infrared, and process measurements from any supported device, applies the same trending, alarming, and analysis tools across all inputs, and delivers a consistent view of asset health. Whether sensors are hard-wired for high-speed data or deployed wirelessly for flexible coverage, InsightCM provides the same reliable diagnostics, visualization, and long-term data management to support predictive maintenance and improved reliability.

Measurement Capabilities:

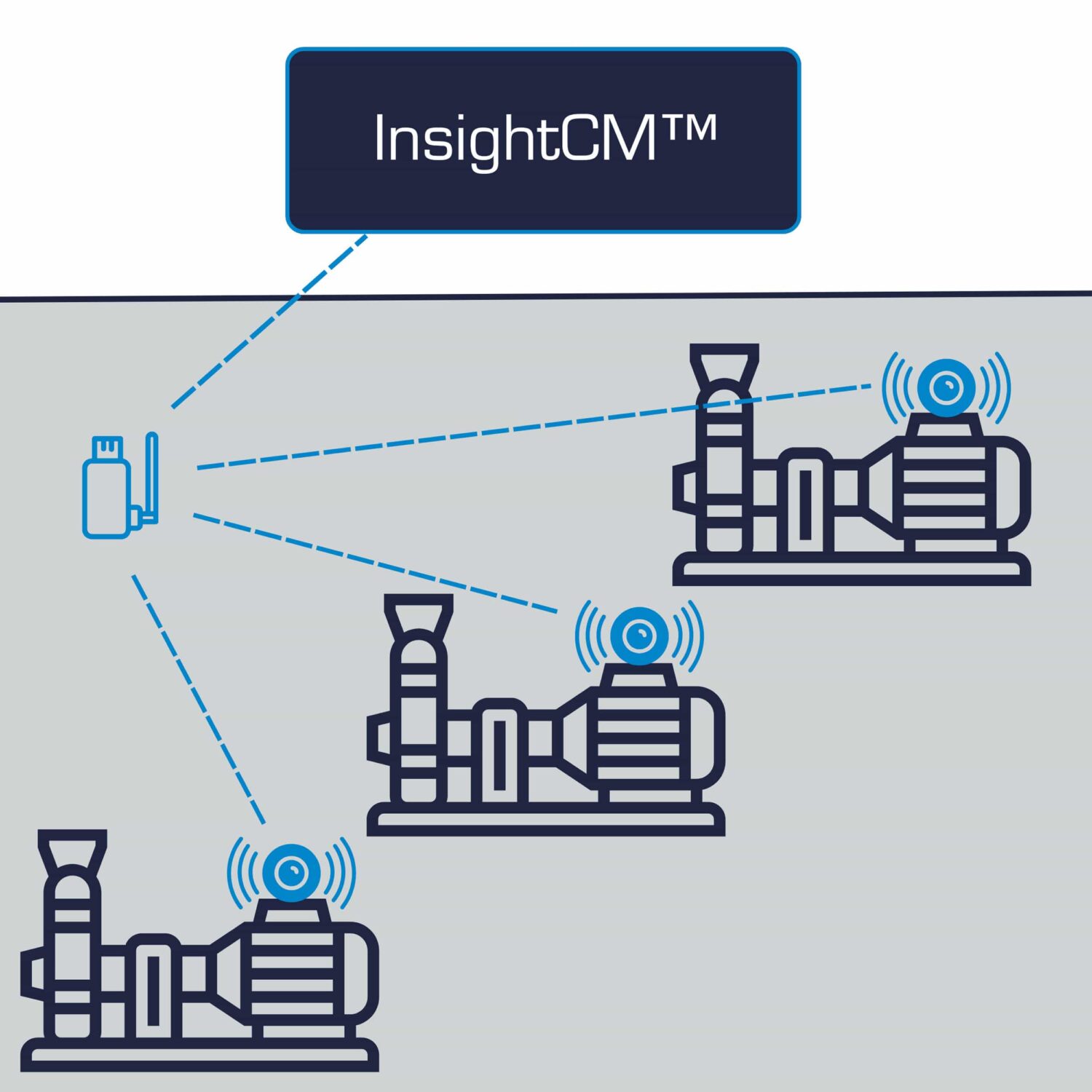

How It Works

BLE5-based platform offers vibration, process, and infrared monitoring options
Supports wireless process sensors, including K-type thermocouples and non-contact temperature
Uses a shared wireless gateway to reduce cost and reuse existing infrastructure

Configuration Options:

NEMA4X/IP66-rated Cutsforth Erbessd Gateway available in multiple configurations
PoE option enables simple power and communication via Category 6 Ethernet
120 VAC version supports Ethernet or Wi-Fi network connectivity
Each gateway connects 100+ sensors with 80–100 m line-of-sight range
