Erbessd Wireless Monitoring

Wireless Solutions Using Hardware from Erbessd

Erbessd Wireless Vibration Monitoring

The vibration options from Erbessd include a low-range, tri-axial accelerometer with a temperature sensor, or a high-range, tri-axial accelerometer. Both sensors have an interchangeable battery, and the high-range sensor includes a frequency range of up to 10 kHz. An Atex/Hazardous Location-Rated version is also available. Battery life is typically three-plus years with waveform collection occurring 2–3 times per day with hourly overall velocity RMS measurements.

Triaxial Vibration Sensors

Phantom Expert Wireless Triaxial Vibration Sensor — High Frequency

Model: EPH-V11E
Frequency Range: 0.5 Hz–10 kHz [x&y], 0.5 Hz–5.1 kHz [z]
Amplitude Range: 8–16–32 g (software selectable)
Battery: Replaceable (CR2477)

Phantom Expert Wireless Triaxial Vibration Sensor — High Sensitivity

Model: EPH-V10E
Frequency Range: 0.5 Hz–4 kHz [x&y], 0.5 Hz–1.8 kHz [z]
Amplitude Range: 2–4–8 g (software selectable)
Battery: Replaceable (CR2477)

View the Phantom Gen 3 Vibration Sensor Datasheet

ATEX Triaxial Vibration Sensors

Phantom ATEX Wireless Triaxial Vibration Sensor ATEX CLASS II — High Frequency

Model: EPH-ATX16
Frequency Range: 0.5 Hz–10 kHz [x&y], 0.5 Hz–5.1 kHz [z]
Amplitude Range: 8–16–32 g (software selectable)
ATEX Hazardous Area Certified:
Gas (Zone2): II 3G Ex ic IIC T4 Gc x
Dust (Zone 22): II 3D Ex ic III T4 Dc x
Battery: Not Replaceable

Phantom ATEX Wireless Triaxial Vibration Sensor ATEX CLASS II — High Sensitivity

Model: EPH-ATX15
Frequency Range: 0.5 Hz–4 kHz [x&y], 0.5 Hz–1.8k Hz [z]
Amplitude Range: 2–4–8 g (software selectable)
ATEX Hazardous Area Certified:
Gas (Zone2): II 3G Ex ic IIC T4 Gc x
Dust (Zone 22): II 3D Ex ic III T4 Dc x
Battery: Not Replaceable

View the Phantom Atex Vibration Sensor Datasheet

Erbessd Wireless Process Monitoring

The Erbessd gateway supports wireless transducers for process monitoring including options for K-type thermocouple measurement and a non–contact temperature sensor. Utilizing a common wireless gateway infrastructure reduces cost and promotes reuse of existing investments. Pairing a broad wireless platform with InsightCM’s extensive sensing portfolio, allows customers to utilize a single platform for their online condition-based measurement needs maximizing their return on investment.

Erbessd Wireless Temperature Sensor Data Sheets

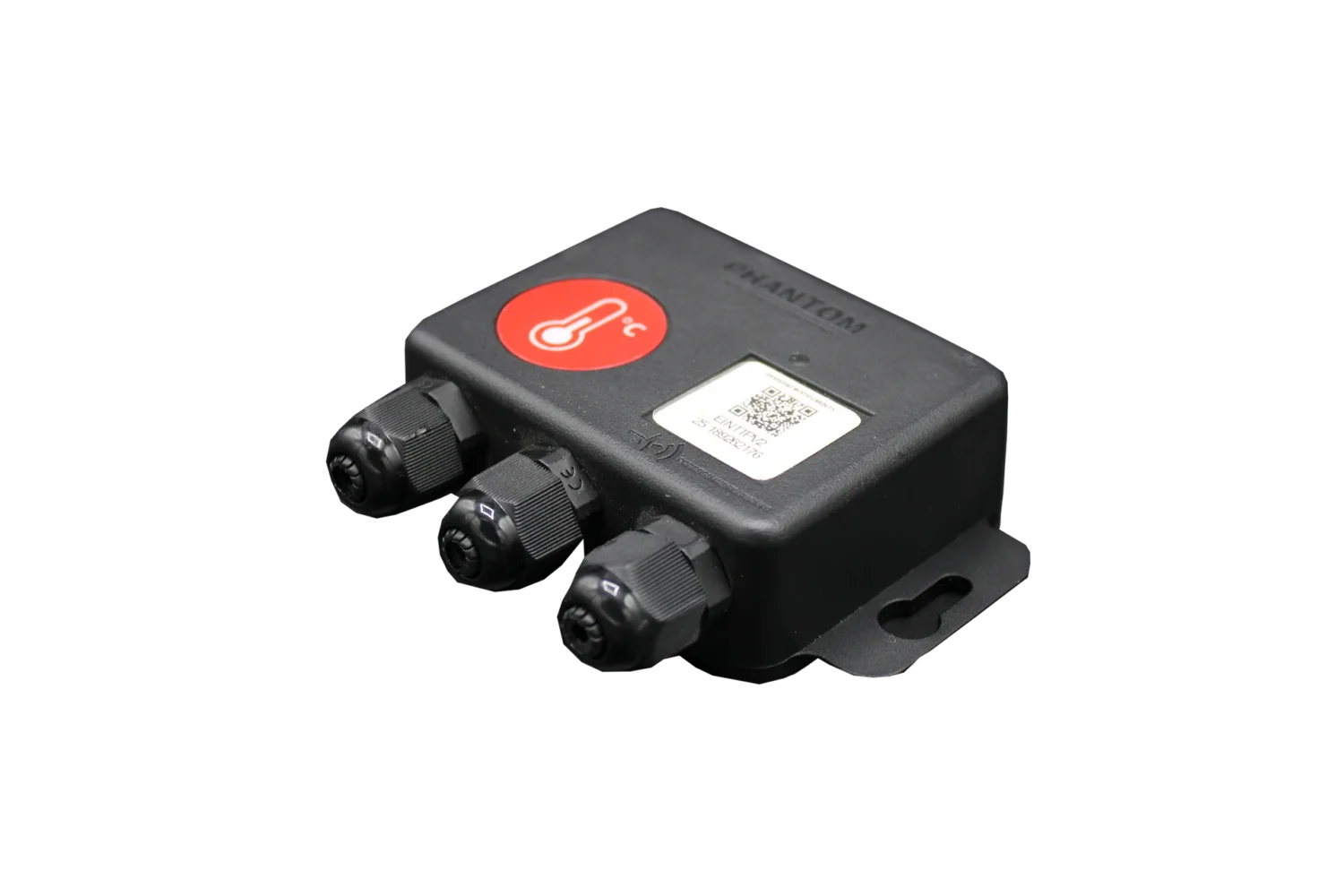

Model: EPH-T25 Type K Thermocouple Sensor

Model: EPH-T20 Non-Contact Temperature Sensor

Erbessd Wireless Infrared (IR) Monitoring Hardware

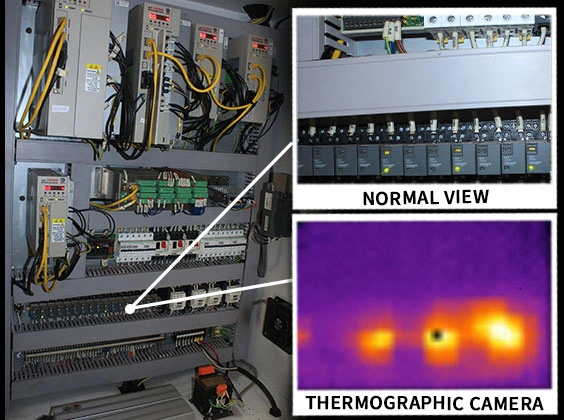

InsightCM also supports the Erbessd wireless infrared camera. This camera is intended to be used in power electronics and switchgear applications within the cabinet itself eliminating the need to create an IR window. Customers can automate temperature of data collection without relying on manual route-based collection of high-voltage assets where arc flash is a concern.
